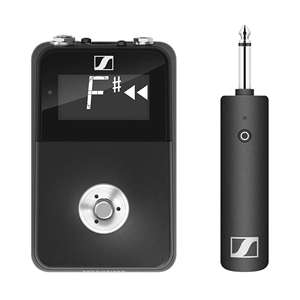

Sennheiser XSW-D Pedalboard Set - Wireless Guitar System

---

One-touch digital system that anyone can operate.

It's as easy as plugging in a guitar cable, thus enabling you to concentrate more on a performance.

Sennheiser's One-touch ease-of-use wireless audio set utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.

XSW-D Features

• One touch ease-of-use
• 2.4 GHz digital transmission for worldwide operation
• 75m range (250ft) in optimal conditions
• Up to 5 hours battery life on a single charge
• Switch between multiple transmitters linked to one receiver
• Configure any combination of transmitters and receivers
• Mute from either transmitter or receiver

Specifications

• THD, total harmonic distortion
• < 0.1 %
• Charging time
• typ. 3 h
• Audio output
• Max. 12 dBu
• Operating temperature
• -10 °C to +55 °C (14 °F to 131 °F)
• Signal-to-noise ratio
• ≥ 106 dB
• Operating time
• up to 5 h
• Modulation
• GFSK with TDMA
• Battery Specification
• Li-Ion
• Capacity
• 850 mAh
• Codecs
• aptX® Live
• Frequency range
• 2,400 - 2,483.5MHz
• Max. Input voltage
• typ. 5.0 V
• Transmission power
• max. 10 mW
• Voltage
• 3.7 V
• Operating relative humidity
• 95 % (non-condensing)
• Latency
• < 4 ms
• Temperature Range
• 0 °C - 60 °C (32 °F - 140 °F)
• Audio frequency response
• 3.5 mm Jack/XLR: 80 - 18,000 Hz
  6.3 mm Jack: 10 - 18,000 Hz

What's in the box

• XSW-D 6.3mm (1/4”) transmitter
• XSW-D Pedalboard receiver
• Receiver power supply
• Extension cable 6.3mm (1/4”)
• Belt clip
• USB-C to USB-C charging cable

Model:	XSWDPEDALBOARD
Manufacturer:	Sennheiser
