Warm Audio WA-84-CB - Small Diaphragm Condenser Microphone

WA84CB

In stock
Weight:  5.00
Price: $399.00
South
2 in stock.
North
Out of stock

Sound Like A Legend

The WA-84 is a small diaphragm condenser microphone based on classic microphone circuitry. The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET. The WA-84 is designed for pro studio, home studio, live, and broadcast applications and sounds great on a variety of instruments and sources, such as; acoustic/electric guitars, acoustic/electric bass, drums, piano, strings, brass & woodwind instruments, and an array of other sources.



Large Sound, Small Size

The WA-84 has a very LARGE sound for its small size and uniquely uses a heavy Nickel CineMag transformer in its signal path to warm up and ENLARGE sound sources. Small diaphragm condenser microphones have widely moved to transformer-less technology in recent years for ease of design and a lower-cost manufacturing process. When designing the WA-84 we chose to go the extra mile and tackle a more boutique design known for its crystal clear, yet smooth, LARGE sound.



Boutique Tone

We are proud to offer something special to the market-place by using large core transformer technology (CineMag USA) in a small diaphragm condenser microphone package. The result is a circuit that we feel sounds absolutely gorgeous and goes the extra mile in terms of signal integrity and smooth boutique tone.


The Capsule
The WA-84 utilizes a custom vintage-style capsule designed to emulate classic componentry and design techniques. The WA-84’s capsule is carefully manufactured by an Australian capsule supplier and is precisely reproduced to vintage specs. We are pleased to offer such a high quality capsule in this microphone which allows us to nail the sonics of the most important component of any microphone.

The Circuit
The WA-84 is a fully discrete Class A design that utilizes a CineMag USA transformer, polystyrene and Wima capacitors and a Fairchild FET.

The Transformer
The WA-84 utilizes an American made CineMag USA transformer that contributes to the legendary creamy smooth top-end and the BEEFY mid to bottom-end one would hope to get from an 84-style small diaphragm condenser microphone.

The Capacitors
The WA-84 proudly utilizes Wima, polystyrene and tantalum through-hole capacitors throughout.


Technical Specifications

  • UTILIZES A CINEMAG USA TRANSFORMER

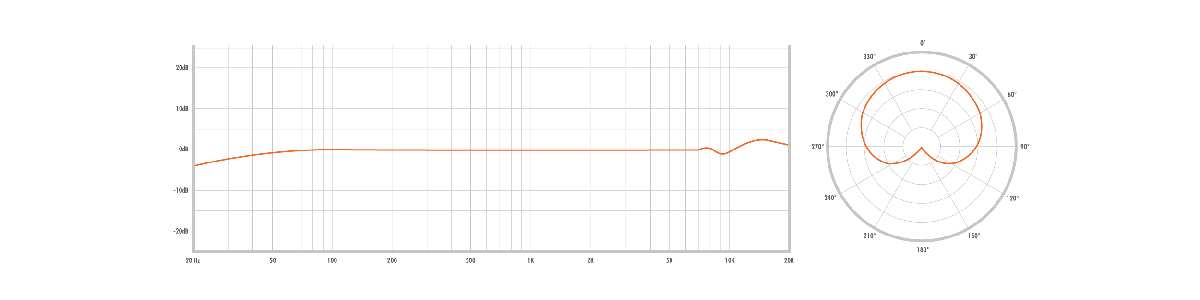

  • DIRECTIONAL PATTERN: CARDIOID
  • FULLY DISCRETE VINTAGE-STYLE SIGNAL PATH
  • VINTAGE CAPSULE REPRODUCTION
  • PACKAGE INCLUDES: MICROPHONE, CARDIOID CAPSULE, SHOCK-MOUNT, MIC CLIP, WINDSCREEN AND CARRYING CASE
  • 48V PHANTOM POWERED
  • FREQUENCY RANGE: 20HZ - 20KHZ
  • SENSITIVITY: -39DB OR 11MV/PA @ 1KHZ
  • OUTPUT IMPEDANCE: 200Ω
  • RATED LOAD IMPEDANCE: ≥1KΩ
  • PAD: 0DB OR -10DB
  • MAXIMUM SPL: 123/133DB @ 1KHZ, 0.5% THD, 0/-10DB
  • S/N RATIO: 78DBA (IEC651)
  • EQUIVALENT NOISE: 16DBA (IEC651)
  • DYNAMIC RANGE: 107DBA (IEC651)
  • CONNECTOR: 3-PIN GOLD-PLATED XLR
  • WEIGHT: 122G EACH
  • FINISH: BLACK & NICKEL





Model: WA84CB
Manufacturer: Warm Audio
