Fender Tone Master Deluxe Reverb - 22W 1x12 Lightweight Amplifier with Power Attenuator

---

FAITHFULLY MODELED | HALF THE WEIGHT

In a bold Fender first, the Tone Master Deluxe Reverb amplifier uses massive digital processing power to achieve a single remarkable sonic feat: faithfully modeling the circuitry and 22-watt power output of an original Deluxe tube amp. Using a high-performance 100-watt digital power amp to achieve the headroom and dynamic range of a real vintage Deluxe tube amp, paired with the pronounced sparkle and clarity of a single Jensen N-12K neodymium speaker and a resonant pine cabinet, the result is tubeless Deluxe Reverb tone, volume and dynamics virtually indistinguishable from the all-tube original. And with all these features, the Tone Master Deluxe Reverb is in fact about only half the weight of an all-tube Deluxe.

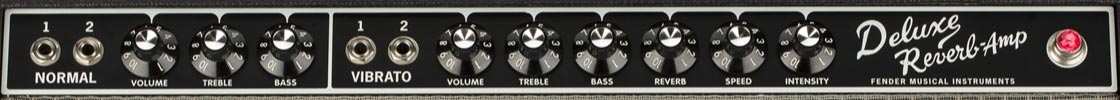

Front panel features give guitarists a playing experience identical to the tube version, including Fender’s world-standard reverb and tremolo effects. Additional rear-panel features deliver modern convenience and flexibility--including an output power selector for full power and five attenuated settings, balanced XLR line output with impulse response (IR) cabinet simulations, mute switch for silent stage or recording use, USB port for firmware upgrades, and more.

Tonemaster Deluxe Reverb Features

• Jensen N-12K neodymium speaker
• Normal and Vibrato channels, each with two inputs
• Rear-panel output power selector for full power and five attenuated settings
• Balanced XLR line output with impulse response (IR) cabinet simulations, level control, and ground switch
• Lightweight, resonant pine cabinet
• Power jewel illuminates in different colors for normal operation, warmup, and mute/silent mode
• USB port for firmware upgrades
• Universal worldwide 100V – 240V operation
• Cover and two-button footswitch included

Electronics

• Channels
• Two - (Normal and Vibrato)
• Connection Type
• 1/4"
• Connectivity
• USB For Firmware Updates
• Control Panel
• Normal: Volume, Treble, Bass; Vibrato: Volume, Treble, Bass, Reverb, Speed, Intensity EffectsReverb, Tremolo
• Inputs
• Four - (1/4", Two Normal and Two Vibrato)
• Line Out
• One - (Balanced XLR with Ground Lift and Level Control)
• Voltage
• 120V
• Wattage
• 100W into 8Ω (Simulates 22W Tube Amp Performance)

Hardware

• Amplifier Covering
• Black Textured Vinyl
• Amplifier Jewel
• Red (Power), Red/Amber (Warmup), Amber (Mute)
• Cabinet Material
• Lightweight Solid Pine
• Control Knobs
• Vintage-Style Skirted Black Plastic
• Front Panel
• Black
• Grille Cloth
• Silver
• Handle
• Molded Plastic Strap with Nickel-Plated Caps
• Rear Control Panel
• Power, Mute, Output Power Selector, Cabinet Simulator, Line Out Level, Ground Lift
• Reverb Tank
• DSP
• Reverb Tank Type
• DSP

Speakers

• Speakers
• One - 12" Jensen® N-12K Neo
• Total Impedance
• 8 ohms

Measurements

• Amp Height
• 17" (43.2 cm)
• Amp Width
• 24.1" (61.2 cm)
• Amp Depth
• 9.28" (23.6 cm)
• Amp Weight
• 23 lbs (10.4 kg)

Accessories

• Footswitch
• 2-Button Footswitch Included





Model:	2274100000
Manufacturer:	Fender
