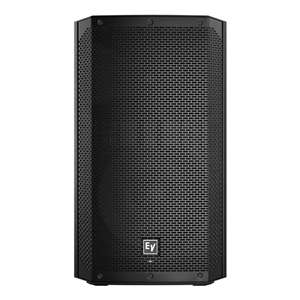

Electro-Voice ELX200-12P 12" 2-Way Powered Speaker

---

ELX200-12P features high-efficiency Class-D power amplifiers with integrated QuickSmartDSP, and delivers up to 130 dB SPL utilizing transducers designed and engineered by EV. Powered full-range models allow easy setup via four presets to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and durable polypropylene enclosures, three M10 threaded mounting points and the proven ZLX handle design for easy lifting.

The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind.

Features

• Quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously
• Receive immediate notification during critical performance conditions
• QuickSmartDSP features best-in-class processing
• Easy setup via four presets: sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters
• Master volume control to optimize gain structure via LCD
• High-efficiency 1200 W Class-D power amplifier delivers up to 130 dB peak
• SPL utilizing transducers designed and engineered by EV
• EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading
• Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX three-handle design for easy lifting



Specifications:

• Frequency response (-3 dB)
• 57 Hz - 16 kHz
• Frequency range (-10 dB)
• 51 Hz - 20 kHz
• Maximum SPL
• 130 dB
• Coverage (H x V)
• 90° x 60°
• Power rating
• 1200 W
• LF transducer
• EVS-12M 300 mm (12 in)
• HF transducer
• DH-1L 1-inch titanium compression driver
• Crossover frequency
• 1700 Hz
• Connectors
• (1) Stereo RCA Input, (2) XLR/TRS combo jack, and (1) XLR
• Enclosure
• Polypropylene
• Grille
• 18 AWG steel with powdercoat
• Suspension
• (3) M10 suspension points
• Color
• Black
• Dimensions (H x W x D)
• 629 mm x 363 mm x 344 mm (24.8 in x 14.3 in x 13.6 in)
• Net weight
• 15.6 kg (34.4 lb)
• Shipping weight
• 17.7 kg (39.1 lb)
• Power consumption
• 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A

Model:	ELX20012PUS
Manufacturer:	Electro Voice
