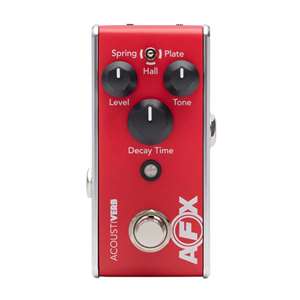

Fishman AFX AcoustiVerb Mini Reverb Pedal

---

AFX Acoustiverb

Three quality reverbs – Hall, Plate, Spring – are blended in parallel with your direct sound while preserving your acoustic tone. The Reverb Time knob controls how long you hear the effect, and ranges from short to very large spaces. Tone knob affects only the reverb and not your direct sound. Similarly, the Level knob adds the effect into your signal chain without overwhelming the sound of your instrument.



Features:

• Hall, Plate, and Spring Reverb Types
• True Bypass with Buffered Bypass Option
• Intuitive Decay Time, Tone, and Level Controls
• Innovative Dual Path Routing
• Super Compact Design Fits Almost Anywhere





3 Effects:



Specifications:

• MODEL NUMBER
• PRO-AFX-RV2
• AUDIO I/O
• 1/4" TRS input and output (TRS enables Dual Path Functionality)
• DSP
• 32-bit processing
• BYPASS
• True Bypass with Buffered Bypass Option
• Dimensions
• 1.9” W x 3.8” D x 1.92” H (49mm W x 97mm D x 49mm H)
• MATERIAL
• Durable aluminum enclosure
• CURRENT DRAW
• 53mA, typical
• POWER
• 910-R AC Adapter (sold separately) or suitable filtered and regulated 5.5mm OD, 2.1mm ID Barrel Connector, Center = negative
• ANALOG SIGNAL PATH
• Input impedance: 10M Ohm | Output impedance: 1k Ohm | Signal-to-noise: -100dB | Dynamic range: 100dB
• DIGITAL SIGNAL PATH
• A/D, D/A conversion: 24-bit | Signal processing: 32-bit

Model:	PROAFXRV2
Manufacturer:	Fishman
