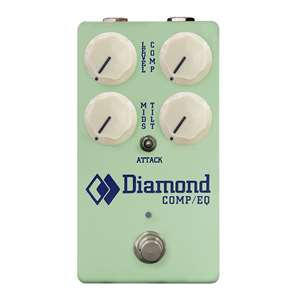

Diamond Comp/EQ Optical Compressor and Equalizer | Surf Green Edition

---

Comp/EQ

There are few compressors that are more sought after than this green box Diamond. This next-gen compressor maintains the classic circuit architecture while increasing range and functionality. The EQ section allows you to sculpt your tone in the same box that squashes it (that’s a good thing). Furthermore, the attack switch allows you to go from the signature ultra-snappy Diamond comp style all the way to softer transparent compression. Design with Mids boost/cut control, Attack switch, custom spec'd US made opto-isolators, and modern quiet switching. Complete with all analog, Burr-Brown audio path, top-mounted jacks, 9-18VDC operation and relay based true bypass switching.





Specifications:

• Input Impedance:
• > 1MΩ
• Output Impedance:
• < 10KΩ
• Switching:
• Relay True Bypass
• Power Requirement:
• 9-18 VDC , negative tip, 2.1 mm barrel jack.
• Current Draw @ 9 VDC :
• 22mA
• Tilt EQ Fulcrum Frequency:
• 800 Hz +|- 6 dB
• Mid EQ Center Frequency:
• 800 Hz +|- 10 dB
• Dimensions:
• 122 x 66.98 x 39.64 mm (4.8 x 2.64 x 1.58")
• Weight:
• 280 g
• Origin:
• Made In Canada

Model:	COMP/EQSG
Manufacturer:	Diamond
