The beginning and the end.

The Alpha·Omega 500 is a 500W amplifier equipped with an all-analog preamplifier, two distinct distortion circuits (Alpha and Omega), a custom-designed Darkglass high-efficiency class D Module, an ultra-quiet graphic equalizer, and a digital impulse-response cabinet emulator for DI outputs or headphones.

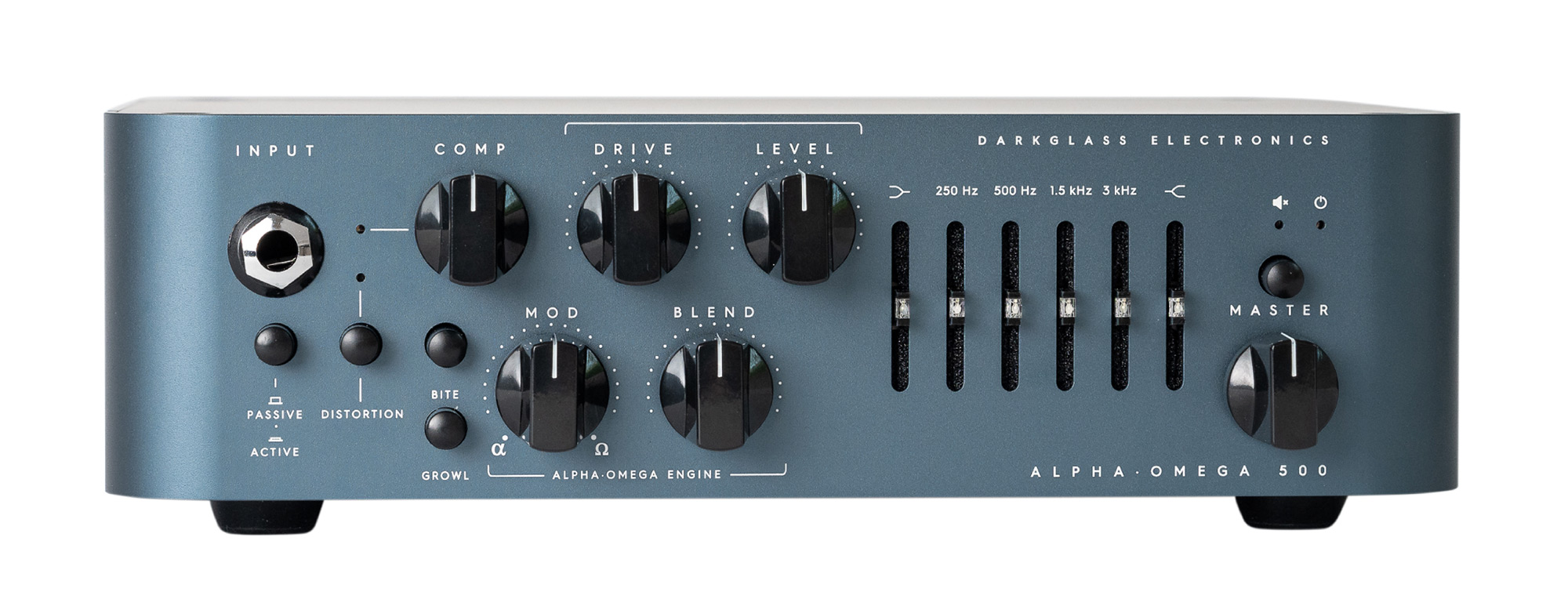

Darkglass Alpha Omega 500 Front Controls

Front Panel Features

Input
Use this jack to connect your instrument via a standard ¼” mono cable.

Passive/Active
Use this push-button switch to change from passive to active mode. If your bass is active it can have a hotter signal making the amp to distort early (feel free to use if such additional distortion is desired).

Distortion
Use this push button to turn on or off the Alpha·Omega Engine™ to add natural compression, organic harmonic enhancement, and saturation ranging from mild overdrive to high gain bass rage. The Alpha·Omega Engine operates before the clean section (you can therefore use the 6-Band Active EQ for additional tone shaping).

Bite
Boosts high mids (2.8kHz) for additional presence and definition.

Growl
Shelving Bass Boost for a fatter tone and increased low end saturation.

Compression
This knob controls the amount of dynamic compression added to the Alpha·Omega Engine. The make up gain is adjusted automatically. The compression can be turned off or assigned using the Darkglass Suite.

Drive
This knob controls the amount of distortion that the Alpha·Omega Engine will deliver. It will change from a soft, warm overdrive to a massive and modern distortion sound.

Level
Use this knob to control Alpha·Omega Engine’s output volume.

Blend
Use this knob to mix between the Clean signal and the Distortion signal (Alpha·Omega Engine).

Mod
Selects or mixes between the two distinct distortion circuits: Alpha is punchy, tight with a lot of definition, whereas Omega is simply brutal and raw.

Bass
+-12dB at 80Hz. Use this slider to change the low-end content of the signal.

Mids
+-12dB at 250, 500, 1.5k and 3kHz. These sliders control the mid content of the signal.

Treble
+-12dB at 5kHz. Use this slider to change the high content of the signal.

Master
Use this knob to control the overall volume of the amplifier.

Mute
Use this push button to mute the amplifier.

Darkglass Suite

Using the desktop version of the Darkglass Suite allows you to select and use impulse responses from a provided library in addition to loading your own custom impulse responses. In addition, you can control the amplifier channel settings for the Super Intelligent Footswitch.

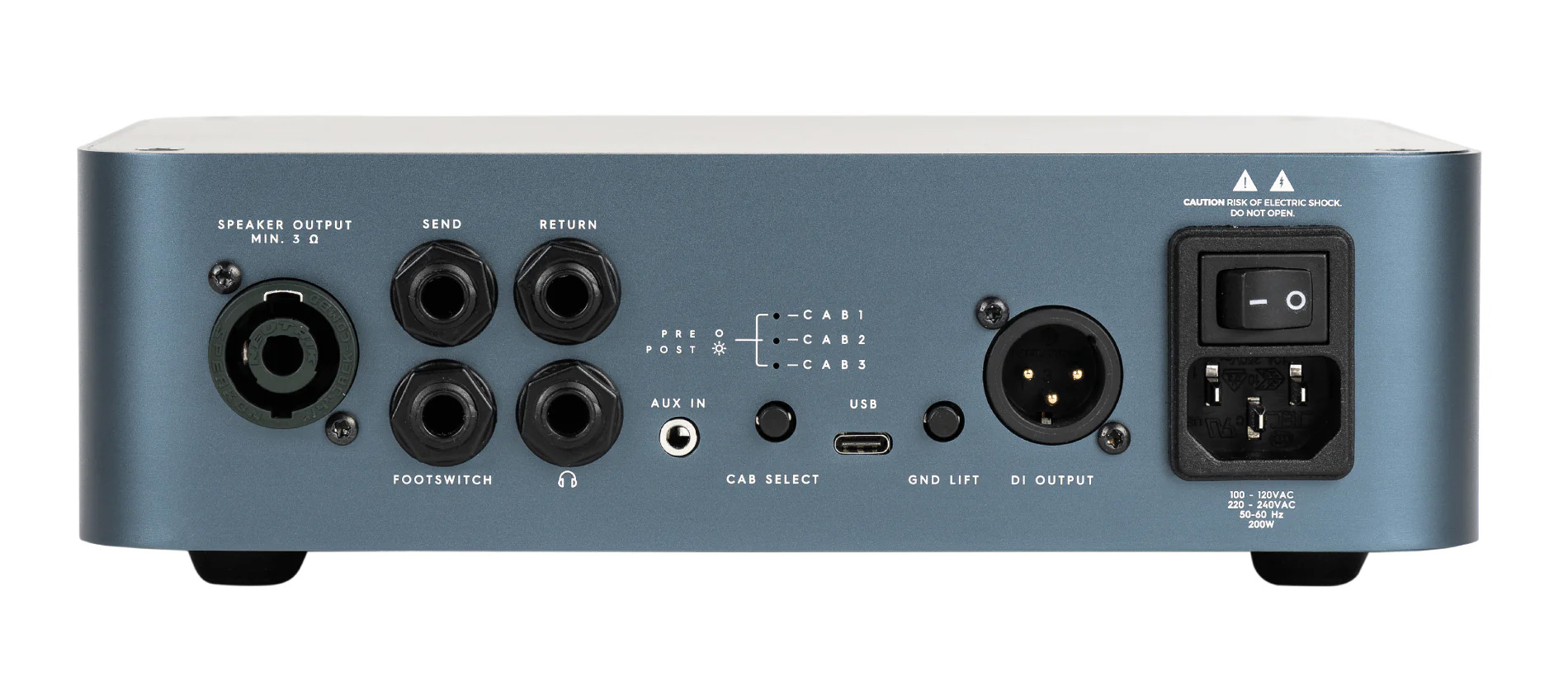

Darkglass Alpha Omega 500 Rear Panel

Back Panel Features

Speaker Output
Use this connector to connect the amplifier to your cabinet. This Speakon combo jack allows for either Speakon or ¼” speaker cable operation.

Send
Use this output to send the signal to effects pedals.

Return
Use this input to receive the signal from effects pedals. Master volume control is after this input.

Ground Lift
Use this control to lift the ground of the DI XLR output. If you are experiencing ground noise in your DI signal try changing the setting of this control.

DI Output
Use this connector to send your signal to the console, mic preamp, interface, etc. Both signals are available (Bypass and the amp signal with cabinet simulation) and are switched from the cab select switch.

USB
The USB connector allows you to use the Darkglass Suite to load different cabinet impulses or change different parameters on your amp.

Headphone Output
Connect your Headphones and enjoy the impulse based cabinet emulation.

AUX IN
Use this connector to play music from your laptop, phone, MP3 player, etc. This input is routed only to the headphone output.

Cabinet Select
Use this switch to navigate between the 3 different cabinet impulses or the clean DI signal. This selection will define both the XLR and headphone out signal.

Footswitch
The Intelligent Footswitch is a proprietary digitally controlled device that allows you to remotely engage and disengage the Alpha·Omega Engine. You can also hold the footswitch to Mute the amplifier. The distortion push button will remain operational with the Intelligent Footswitch plugged in.

AC Socket
Use this connector to feed electric power to the amplifier. 100 – 230 VAC, 50-60Hz. Set the voltage selector switch to the correct position before turning on the amplifier!

AC Power ON/OFF
Use this Switch to release the audio energy from your bass.



Specifications:

  • Input Impedance:
  • 1MΩ
  • Minimum Load Impedance:
  • Maximum Power Output:
  • 500 W RMS @ 4Ω 250 W RMS @ 8Ω
  • Power Amp Input Impedance:
  • 1MΩ
  • Power Amp Input Level:
  • 2400 mV RMS
  • Pre-Amp Output Impedance:
  • 1kΩ
  • Pre-Amp Output Level:
  • 2400 mV RMS
  • Maximum Power Consumption:
  • approx. 700VA
  • Cooling:
  • Forced-air cooled
  • AC Input Power:
  • 100-120/210-250 VAC (using selector switch on left side panel).
  • Cycles:
  • 50/60 Hz



Dimensions:

  • Width:
  • 23 cm / 9″
  • Length:
  • 18 cm / 7″
  • Height:
  • 7.1 cm / 2¾”
  • Weight:
  • 2.4 kg / 5.3 lb


Model: AO500
Manufacturer: Dark Glass
