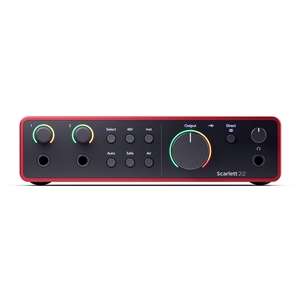

Focusrite Scarlett 2i2 (4th Gen) - 2-in, 2-out USB Type-C Interface

---

Artists. This is your Scarlett.

The original studio-quality 2-in, 2-out interface, has been remastered for the artist. Two of our most detailed ultra-low-noise mic pres. Hi-Z and super-high-quality line inputs for guitars, keys and synths. Studio-grade converters, with a huge 120dB dynamic range that matches what you'd find in a pro studio.

Auto Gain and Clip Safe make sure you'll never need to worry about your levels. Air mode, with Presence and Harmonic Drive, gives you that big console sound wherever you record. And the Hitmaker Expansion software bundle includes all the tools you need to record, produce and release your tracks.



Features:

• 69dB gain range
• 120dB dynamic range
• Auto Gain
• Clip Safe
• Air modes
• Complete software bundle



Get big console sound with two re-engineered Air modes: Presence and all-new Harmonic Drive.





All the software you need to make a hit record.

Once you’ve got started with Ableton Live Lite or three months of Pro Tools Artist recording software (both included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.





Huge 120dB dynamic range for incredible recordings.

Scarlett delivers incredible audio quality, with converters direct from our flagship REDNET interfaces – as found in high-end studios around the world.



Loud and clear – with any headphones.

A custom-designed headphone amp design sets the stage for the best playback you've ever heard from a Scarlett interface, driving high-impedance headphones louder and clearer than ever before.



Easy Start

Need help getting set up? Just tell our Easy Start tool what you want to do and we’ll guide you through all the software and setup you need, with recording tips and other helpful content along the way.



Overview:

• Number of Microphone Preamps
• 2
• Phantom Power
• Yes
• Instrument Inputs
• 2
• Line Inputs
• 2
• Air Mode
• Yes
• Auto Gain
• Yes
• Clip Safe
• Yes
• Line Outputs
• 2
• Headphone Outputs
• 1
• Loopback
• Yes
• Connectivity
• USB Type-C
• Protocol
• USB 2.0
• Form Factor
• Desktop
• Simultaneous I/O
• 4 x 2 (including Loopback inputs)
• A/D Resolution
• 24-bit/192 kHz
• Bus Powered
• Yes (900mA)



Sample Rate:

• Supported sample rates
• 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz



Microphone Inputs:

• Frequency Response
• 20-20kHz ± 0.06dB
• Dynamic Range
• 116dB (A-Weighted)
• THD+N
• -100dB @ 8dB gain
• Noise EIN
• -127dBu (A-Weighted)
• Maximum Input Level
• 16dBu
• Gain Range
• 69dB
• Impedance
• 3kΩ



Line Inputs:

• Frequency Response
• 20-20kHz ± 0.05dB
• Dynamic Range
• 115.5dB (A-Weighted)
• THD+N
• -100dB @ 8dB gain
• Maximum Input Level
• 22dBu
• Gain Range
• 69dB
• Impedance
• 60kΩ



Instrument Inputs:

• Frequency Response
• 20-20kHz ± 0.15dB
• Dynamic Range
• 113dB (A-Weighted)
• THD+N
• -80dB @ minimum gain
• Maximum Input Level
• 12dBu
• Gain Range
• 62dB
• Impedance
• 1MΩ



Line Outputs (Balanced):

• Frequency Response
• 20-20kHz ± 0.02dB
• Dynamic Range
• 120dB
• THD+N
• -109dB
• Maximum Output Level
• 16dBu
• Impedance
• 100Ω



Headphone outputs

• Frequency Response
• 20-20kHz ± 0.1dB @ 33Ω / 300Ω
• Dynamic Range
• 112dB @ 33Ω
• 115dB @ 300Ω
• THD+N
• -99dB @ 33Ω
• -108dB @ 300Ω
• Maximum Output Level
• 2.5dBu into 33Ω
• 10dBu into 300Ω
• Maximum Output Power
• 32mW into 33Ω
• 22mW into 300Ω
• Impedance
• 50Ω



Analogue to Digital Converter:

• THD+N
• -110dB
• Dynamic Range
• 120dB



Digital to Analogue Converter

• THD+N
• -115dB
• Dynamic Range
• 130dB (A-Weighted)



Power:

• USB
• 900mA
• External (Optional)
• 4.5W

Model:	SCARLETT2I24G
Manufacturer:	Focusrite
