Walrus Audio Fundamental Distortion - 3-mode Distortion

---

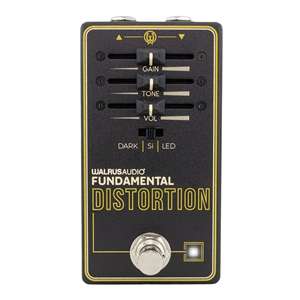

Fundamental Distortion

The Fundamental Distortion is a 3-mode distortion. It covers a wide range of sounds from dark and doom through sharp cutting leads.



Specifications:

• Gain
• The Gain slider sets the amount of gain applied to your guitar signal passing through the fuzz circuit.
• Tone
• The Tone slider controls the frequency response of the signal after distortion. Below center boosts highs and above center cuts highs.
• Volume
• The Volume slider sets the overall output volume of the pedal.
• Slide Switch
• The slide switch allows you to change between 3 distinct flavors of the pedal. Each position has different clipping modes or tone profiles.
• (Slide Switch) Dark
• Asymmetric silicon clipping with added high-frequency cut. Think dark and dynamic.
• (Slide Switch) Si
• Classic silicon hard clipping diodes. Things get compressed and crunchy.
• (Slide Swithc) LED
• LED hard clipping diodes. A dynamic and crunchy sound. Note: The LED clipping mode will be louder due to the nature of the LEDs, so use your volume slider to compensate!
• Bypass Switch
• Turns the effect on and off.
• Bypass LED
• Illuminated when the effect is engaged.
• Input Jack
• 1/4 inch cable from the instrument.
• Output Jack
• 1/4 inch cable to amplifier.
• 9v Jack
• 9-volt DC, Center Negative, 100mA min.

Model:	FUNDDIST
Manufacturer:	Walrus
