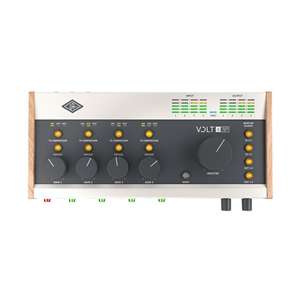

Universal Audio Volt 476P Audio Interface

VOLT476P

In stock
Weight:  0.00
Retail Price: $589.00
Our Price: $469.00
South
1 in stock.
North
Out of stock



Record Big Projects with Pro Sound.

Volt 476P is the perfect USB audio interface for creative collaborators who want to easily record larger audio projects with legendary studio sound. Plug right into your Mac, PC, iPad, or iPhone and Volt just shows up, ready to capture your inspiration with professional sound, courtesy of Universal Audio.





Collaborate with Best-in-Class Audio Quality
From the team that brought you the game-changing Apollo interface, Volt 476P delivers superior studio sound quality, with more character and tone than any USB interface in its class.

Capture Classic Vocals with Vintage Mic Preamp Mode
Few sounds can compare to a vintage Universal Audio 610 tube preamp, as used to record everyone from Ray Charles to Van Halen. Volt 476P gives you the rich, full sound of this classic UA mic/line/instrument preamp, thanks to its built-in tube emulation circuitry, a UA exclusive.

Control Volume Peaks with UA Compression
Get album-ready punch and presence with Volt 476P's onboard 76 Compressor — an innovative analog circuit inspired by UA's classic 1176 Limiting Amplifier. The 76 Compressor features three perfectly tailored presets to tame voice, guitars, synths, and drum machines. Just plug in, pick a setting, and play.

Stay Inspired with a Curated Suite of Audio Software
Some audio interfaces give you a smattering of random audio apps. Not Volt. Instead, UA put together a bundle of serious music production tools, virtual instruments, and plug-ins including Ableton, Melodyne, UJAM’s Virtual Drummer, Marshall, Ampeg, and more.

Easy In, Easy Out
Volt 476P gives you 4 analog preamp inputs — simply plug your mics, guitars, or synths into the front panel. Then connect your speakers or headphones to monitor your audio with no latency. With Volt, you’ll be creating like a pro, fast.

iPad & iPhone Ready
Traveling light? Plug Volt 476P into your iPad or iPhone, and you can easily create beats and samples, record your band’s rehearsals, and edit songs anywhere. (Requires external Volt power supply and an Apple Lightning to USB Camera Adapter (except iPads with USB‑C)

Capture Inspiration for Years to Come
Featuring rugged metal construction, retro wood sides, and sleek industrial design, Volt 476 elevates your production space with impeccable style, built to last decades.



Specifications:

  • Microphone/Line/Instrument Preamp Inputs
  • Four Combo XLR/TRS
  • 76 Compressor presets
  • Selectable VOC, GTR, FAST
  • Compression Ratio:
  • 6:1
  • Additional Line Inputs
  • Two
  • Line Outputs
  • Four
  • Monitor Outputs
  • Two (one stereo pair)
  • Headphone Outputs
  • One stereo
  • USB
  • One USB 2.0 port (USB Type-C connector)
  • MIDI
  • In, Out (two 5-pin DIN connectors)
  • Supported Sample Rates (kHz)
  • 44.1, 48, 88.2, 96, 176.4, 192
  • Bit Depth Per Sample
  • 24
  • Vintage mode
  • Selectable ON/OFF



Microphone Inputs:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.1 dB
  • Dynamic Range (A–weighted)
  • 112 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
  • -103 dB (0.0007 %)
  • Equivalent Input Noise (150 Ohms, A-weighted)
  • -127 dBu
  • Maximum Input Level
  • 9 dBu
  • Input Impedance
  • 3 Kilohms
  • Available Gain
  • 55 dB
  • Phantom Power
  • +48V (switchable)
  • Connector Type
  • XLR Female, pin 2 positive



Instrument Inputs:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.05 dB
  • Dynamic Range (A–weighted)
  • 111 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
  • -84 dB (0.006 %)
  • Maximum Input Level
  • 12.5 dBu
  • Input Impedance
  • 1 Megohms
  • Gain Range
  • 55 dB
  • Connector Type
  • ¼” TS unbalanced



Line Inputs:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.05 dB
  • Dynamic Range (A–weighted)
  • 111 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
  • -102 dB (0.0008 %)
  • Maximum Input Level
  • 22 dBu
  • Input Impedance
  • 15 Kilohms
  • Gain Range
  • 55 dB
  • Connector Type
  • ¼” TRS balanced or TS unbalanced



Line Inputs 3-4:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.05 dB
  • Dynamic Range (A–weighted)
  • 113 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
  • -105 dB (0.0006 %)
  • Maximum Input Level
  • 18 dBu
  • Input Impedance
  • 10 Kilohms
  • Connector Type
  • ¼” TRS balanced or TS unbalanced



Monitor & Line Outputs:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.1 dB
  • Dynamic Range (A–weighted)
  • 110 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)
  • -102.5 dB (0.00075%)
  • Maximum Output Level
  • 15 dBu
  • Output Impedance
  • 100 Ohms
  • Connector Type
  • ¼” TRS balanced or TS unbalanced



Stereo Headphone Outputs:

  • Frequency Response
  • 20 Hz to 20 kHz, ±0.1 dB
  • Dynamic Range (100K load, A-weighted)
  • 110 dB
  • Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS, 300 Ohms)
  • -100 dB (0.001%)
  • Maximum Output Power into 32 Ohms
  • 84 mW per channel
  • Maximum Output Power into 300 Ohms
  • 22 mW per channel
  • Maximum Output Power into 600 Ohms
  • 12 mW per channel
  • Connector Type
  • ¼” TRS Stereo



Package Contents:

  • Volt Audio Interface Unit
  • USB Type-A to Type-C cable
  • External Power Supply Unit with AC adapter kit


Model: VOLT476P
Manufacturer: Universal Audio
