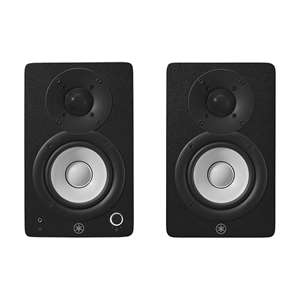

Yamaha HS4 4.5" Powered Studio Monitors (Pair)

---

High-quality compact studio monitors for the uncompromising creator.

HS Series speakers are the standard in studio monitors, trusted for many years by the world’s top audio engineers, producers, and artists. Now Yamaha has redefined their essence in a compact housing. The HS4 is a powerful tool to help create a wide range of audio content—from music production to video editing—that meets the expectations of creators who have limited space but do not want to compromise on monitoring quality.





SOUND THAT IS ALWAYS TRUE TO THE ORIGINAL

The HS4 continues the design philosophy and know-how of previous Yamaha studio monitors. No effort has been spared in the pursuit of the optimal product, and the resulting speakers contain carefully selected parts such as a high-performance class-D amp, a highly resilient MDF cabinet, and woofers and soft dome tweeters that deliver a sound that is faithful to the source despite their small size. They also feature proprietary “Twisted Flare Port” technology that reduces air turbulence noise in the bass reflex port, providing clear and accurate bass. That’s the secret to why the HS4 delivers outstanding resolution, sound image, and depth, with a flat response across all bandwidths without any coloring of the original sound.



OPTIMAL SOUND TAILORED TO YOUR ENVIRONMENT

The sound produced by speakers is sometimes affected by the surrounding environment. The rear panels of the HS3 and HS4 are equipped with ROOM CONTROL and HIGH TRIM functions that allow you to make adjustments to achieve the ideal sound for any environment, such as reducing the unneeded, exaggerated low-end that can often occur when speakers are placed next to walls.



INPUTS AND CONTROLS TO FIT ANY USE CASE

The rear panel of the HS4 is equipped with combination XLR/TRS phone, RCA, and stereo mini connectors, allowing you to connect to a wide range of professional and consumer equipment such as computers, audio interfaces, audio mixers, and electric instruments. The most commonly used features—power button, volume knob, and headphone connector—are located in the front for easy access.



COMPACT AND PORTABLE SIZE

The compact size of the HS4 was made possible thanks to the highly efficient class-D amp. Using one amp for two speakers has enabled us to both reduce the weight of the speakers and simplify the cable connections. They take up little space even in a small bedroom studio, and are easy to take with you on the road.



Features:

• 2-way bass-reflex powered speaker with 4.5" cone woofer and 1" dome tweeter
• 60 Hz - 22 kHz frequency response (-10 dB)
• 26 W + 26 W output power (Dynamic, RL=6 Ω)
• ROOM CONTROL and HIGH TRIM response controls
• XLR/TRS Phone (COMBO), RCA, and Stereo Mini inputs
• Stereo mini - RCA cable, speaker cable, and anti-slip pad included
• Packaging: Pair



Specifications:

• SPEAKER TYPE
• 2-way powered speaker, Bass-reflex type
• FREQUENCY RESPONSE (-10DB)
• 60 Hz - 22 kHz
• FREQUENCY RESPONSE (-3DB)
• 83 Hz - 20 kHz
• CROSSOVER
• 2.3 kHz
• MAXIMUM OUTPUT LEVEL (MEASURED PEAK, IEC NOISE@1M)
• 102 dB SPL
• COMPONENTS
• HF1" Dome
  LF4.5" Cone
• NOMINAL IMPEDANCE
• 6 Ω
• I/O CONNECTORS
• [Input Connector] L Side: COMBO (XLR/TRS Phone) ×2, RCA ×2, Stereo Mini, R Side: Speaker Input; [Output Connector] L Side: Headphone, Speaker Output
• OUTPUT POWER
• 26 W + 26 W (Dynamic, RL=6 Ω), 20 W + 20 W (THD 0.1%, 1kHz, RL=6 Ω)
• INPUT SENSITIVITY
• LINE 1 (COMBO): +4 dBu, LINE 2 (RCA, ST Mini): -10 dBu (Volume: Maximum)
• INPUT LEVEL
• LINE 1 (COMBO): +20 dBu, LINE 2 (RCA, ST Mini): +6 dBu (Maximum Input)
• INPUT IMPEDANCE
• LINE 1 (COMBO): 20 kΩ, LINE 2 (RCA, ST Mini): 10 kΩ
• CONTROLS
• Front: Volume, Rear: ROOM CONTROL SWITCH (0/-2/-4 dB under 500 Hz), HIGH TRIM SWITCH (+2/0/-2 dB above 2 kHz)
• INDICATORS
• Power ON (White LED)
• POWER REQUIREMENTS
• Depending on area of purchase; 100-240 V, 50/60 Hz
  * While this product will work at a voltage of between 100 V to 240 V, as limiter settings vary depending on the supply voltage, make sure to use this product at the supply voltage indicated on the rear panel of this product.
• POWER CONSUMPTION
• 15 W
• CABINET MATERIAL
• MDF
• DIMENSIONS
• WL Side: 150 mm (5.9"), R Side: 150 mm (5.9")
  HL Side: 240 mm (9.4"), R Side: 240 mm (9.4")
  DL Side: 213 mm (8.4"), R Side: 203 mm (8.0")
• NET WEIGHT
• L Side: 3.7 kg (8.2 lb), R Side: 3.1 kg (6.8 lb)
• ACCESSORIES
• Stereo Mini - RCA Cable 1.5 m, Speaker Cable 2.5 m, Anti Slip Pad, Quick Start Guide, Safety Guide
• PACKAGING
• Pair

Model:	HS4B
Manufacturer:	Yamaha
