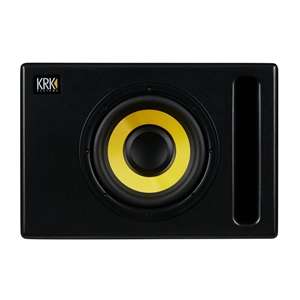

KRK S8.4 - 8" Powered Studio Subwoofer

---

The S8.4 powered studio subwoofer builds upon KRK’s legacy for sonic accuracy in a compact form factor.

The custom-voiced, glass-aramid woofer delivers tight, defined bass, while the Class-D power amplifier dramatically increases transient response, control and punch. The four-position selectable crossover lets you adjust the subwoofer setting easily to your existing monitors.

Pairing the S8.4 subwoofer with KRK or another studio monitor delivers an optimized mixing and listening experience with extended low end, while the exclusive bypass-control feature provides full range audio to the monitors without switching off the subwoofer. KRK’s S8.4 subwoofer doesn’t just deliver precise bass and a rich feature set: it’s the next dimension in subwoofer performance.

Features

• 8" glass aramid composite woofer
• Bass extension to 29Hz with a max SPL of 112.8 dB
• Footswitch control enables/disables sub and crossover filter (footswitch not included)
• Redesigned cabinet with a lower profile and front-firing bass port
• Powerful, lightweight Class D amplification
• Optimized four-position crossover control
• Universal connectivity: XLR, 1/4" TRS, and RCA inputs and outputs
• Polarity and input sensitivity controls
• Ground lift switch prevents ground loops

Specifications

• Configuration
• Front Loaded, Vented Subwoofer
• System Type
• Active Subwoofer
• Low-Frequency
• 8" Glass Aramid Composite Woofer
• Frequency Response
• 34.5Hz - 133Hz
• Max Peak SPL
• 112.8 dB
• Amplifier
• Class D
• Power Output (Continous)
• 109 Watts @ 1% THD+N @ 46Hz
• Signal to Noise Ratio
• 92 dB
• Amplifier Distortion (THD + N)
• ≤ 0.1% @-3dB Of Max Power Output 35Hz-133Hz
• Input Impedance
• 9.4 KΩ Balanced, 9.2 KΩ Unbalanced
• Ground Lift
• On/Off
• HPF Bypass
• With Footswitch Only
• Footswitch
• Optional
• Indicators
• Power/Standby
• Input Connectors
• XLR L/R, 1/4" TRS L/R, RCA L/R, 1/4" Footswitch
• Output Connectors
• XLR L/R, 1/4" TRS L/R, RCA L/R
• AC Power Input
• 100VAC-240VAC
• Enclosure
• 15 mm and 18 mm Reinforced MDF
• Finish
• Black Vinyl Wrap, Baffle - Black Paint Hardware
• Dimensions (H x W x D)
• (H x W x D): 11" (279 mm) x 16.125" (410 mm) x 11.5" (292 mm)
• Weight
• 26.5 lb. (12 kg.)

Model:	S84
Manufacturer:	KRK
