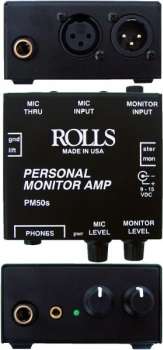

Rolls PM50s Personal Monitor Amplifier

---

The PM50s mixes a stereo or mono line-level Monitor signal with a mic level XLR microphone signal to a set of headphones or earphones. It has a monitor level control, mic level control, mic pass through XLR jacks, two headphone output jacks, and a stereo TRS 1/4" monitor input jack. Possible users may be drummers who need to hear a click track, choir singers who need to hear themselves, etc. The power adapter is included.

Specs

• Inputs
• -20 dB max XLR 1K balanced, 20 dB monitor
• Outputs
• 1/4", and 1/8" (3.5mm) 8 ohm or greater
• Gain
• 20 dB 1/4", 50 dB XLR
• Bandwidth
• 20 - 20K Hz
• S/N Ratio
• 90 dB
• Power
• 9-18 VAC/DC, 9-24 VDC
• Size
• 3" X 2.5" X 1.25"
• Weight
• 1 lb (.45 kg)
• Current drain
• 60ma nominal no load 15vdc

Model:	PM50S
Manufacturer:	Rolls
